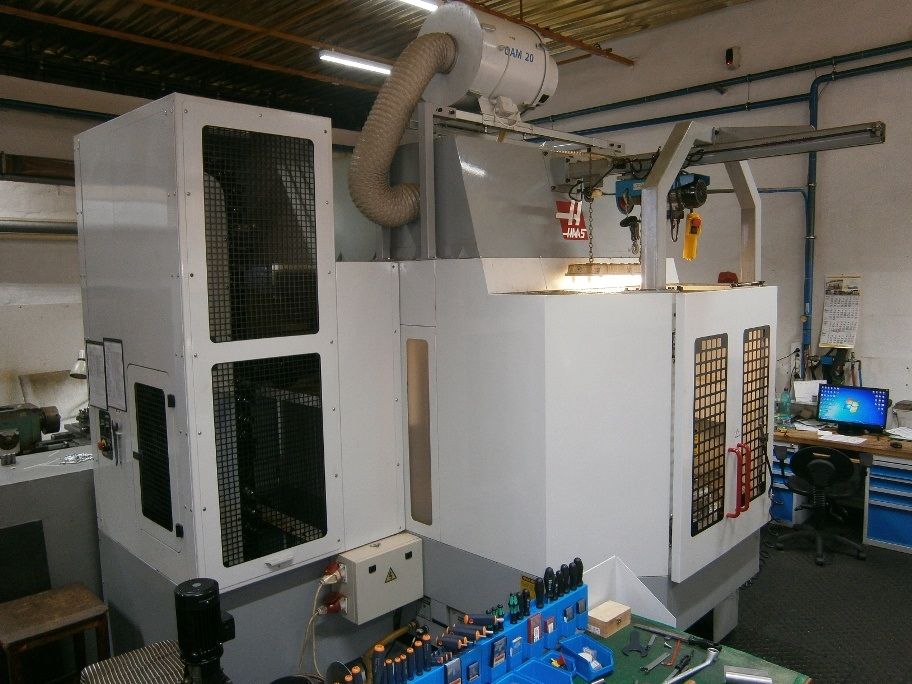

CNC Horizontal Machining Center HAAS HS-1RPHE
CNC Horizontal Machining Center HAAS HS-1RPHE was manufactured by the machine manufacturer HAAS. Machine HAAS HS-1RPHE was built in 2002 year.
General data | |
|---|---|
| Location | Czech Republic |
| region | Jihomoravský kraj |
| Year of manufacture | 2002 |
| Warranty | Without warranty |
| Technical condition | Good |
| Transport | The seller organizes the transport at a surcharge |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Length of the working table | 406 mm |
| Width of the working table | 406 mm |
| Maximum table load (evenly distributed) | 270 kg |
| Power of the spindle drive | 22 kW |
| Number of CNC controlled axles | 4 pcs |
| Number of tools in the magazine | 60 pcs |
| Travel length X-axis (mechanical feed) | 610 mm |
| Travel length Y-axis (mechanical feed) | 508 mm |
| Travel length Z-axis (mechanical feed) | 559 mm |
| Machine height | 2819 mm |
| Machine length | 3683 mm |
| Machine width | 3581 mm |
| Machine weight | 7.3 t |
Equipment | |
|---|---|
| no data | |
