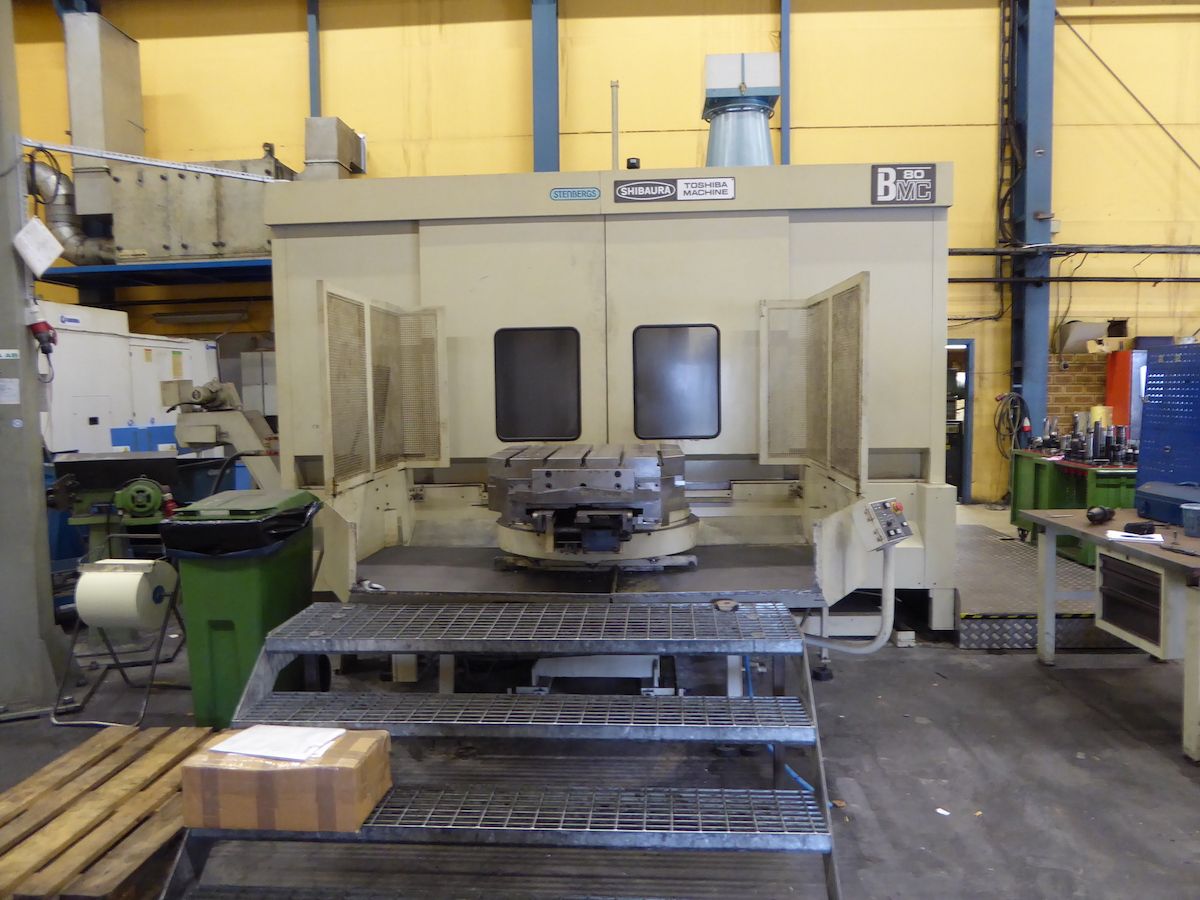

CNC Horizontal Machining Center TOSHIBA BMC 80
CNC Horizontal Machining Center TOSHIBA BMC 80 was manufactured by the machine manufacturer TOSHIBA. Machine TOSHIBA BMC 80 was built in 1987 year.
General data | |
|---|---|
| Location | Poland |
| Year of manufacture | 1987 |
| Warranty | Without warranty |
| Technical condition | Good |
Technical parameters | |
|---|---|
| Length of the working table | 800 mm |
| Width of the working table | 800 mm |
| Maximum table load (evenly distributed) | 2000 kg |
| Number of CNC controlled axles | 4 pcs |
| Number of tools in the magazine | 60 pcs |
| Maximum rotary speed of the spindle | 3000 1/min |
| Travel length X-axis (mechanical feed) | 1600 mm |
| Travel length Y-axis (mechanical feed) | 1000 mm |
| Travel length Z-axis (mechanical feed) | 1120 mm |
Equipment | |
|---|---|
| Pallet changer | |
| CNC rotary table - synchronous axis | |
| Additional CNC rotary table | |
| Lighting | |
| Technical documentation | |
| CE Declaration | |
