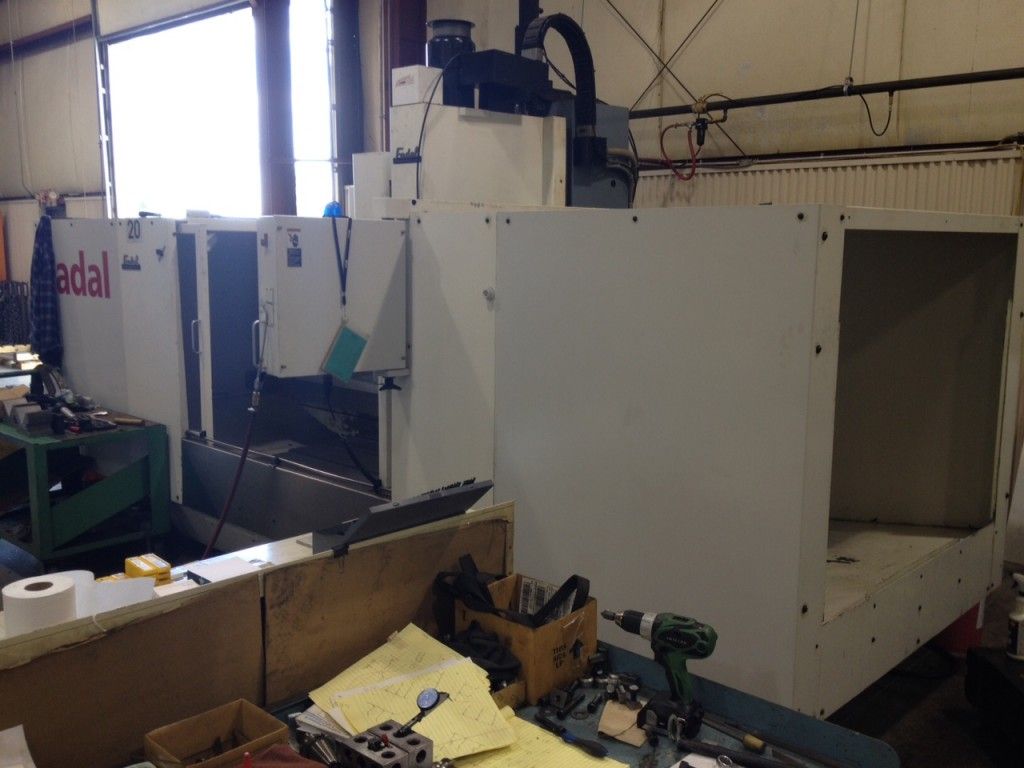

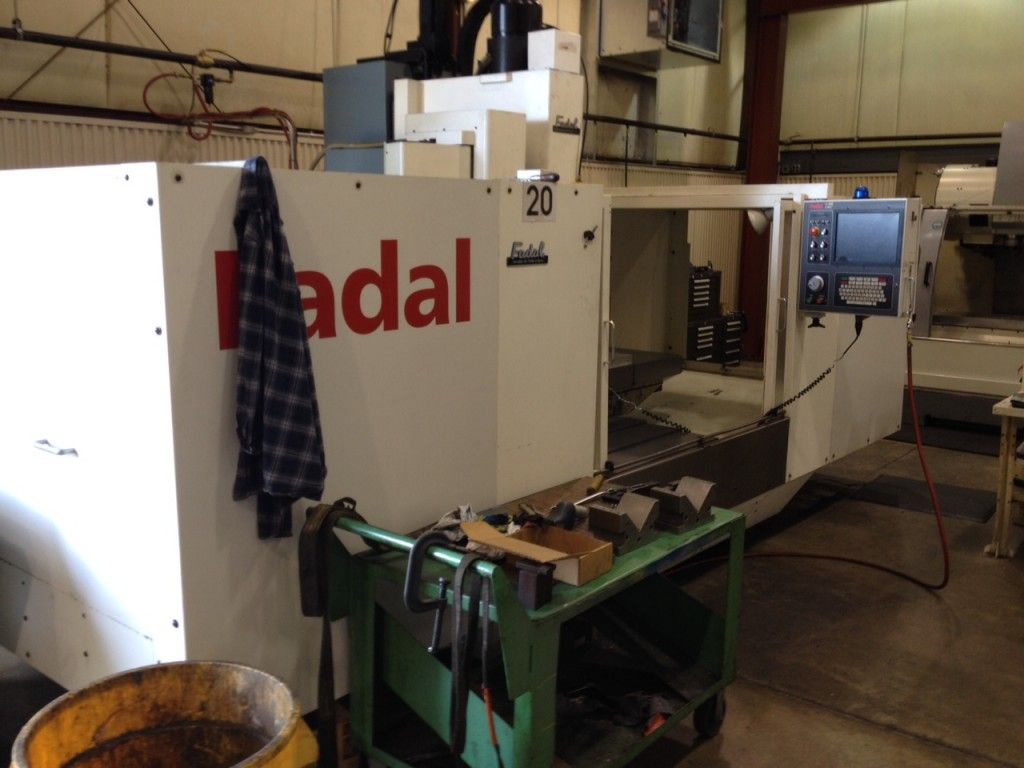

CNC Vertical Machining Center FADAL VMC 8030 HT

Category CNC Milling Machines and Machining Centers FADAL ›
Manufacturer FADAL ›

ARCHIVED AD
CNC Vertical Machining Center FADAL VMC 8030 HT was manufactured by the machine manufacturer FADAL. Machine FADAL VMC 8030 HT was built in 2011 year.

General data

Location United States
region Michigan
Year of manufacture 2011
Warranty Without warranty

Technical parameters

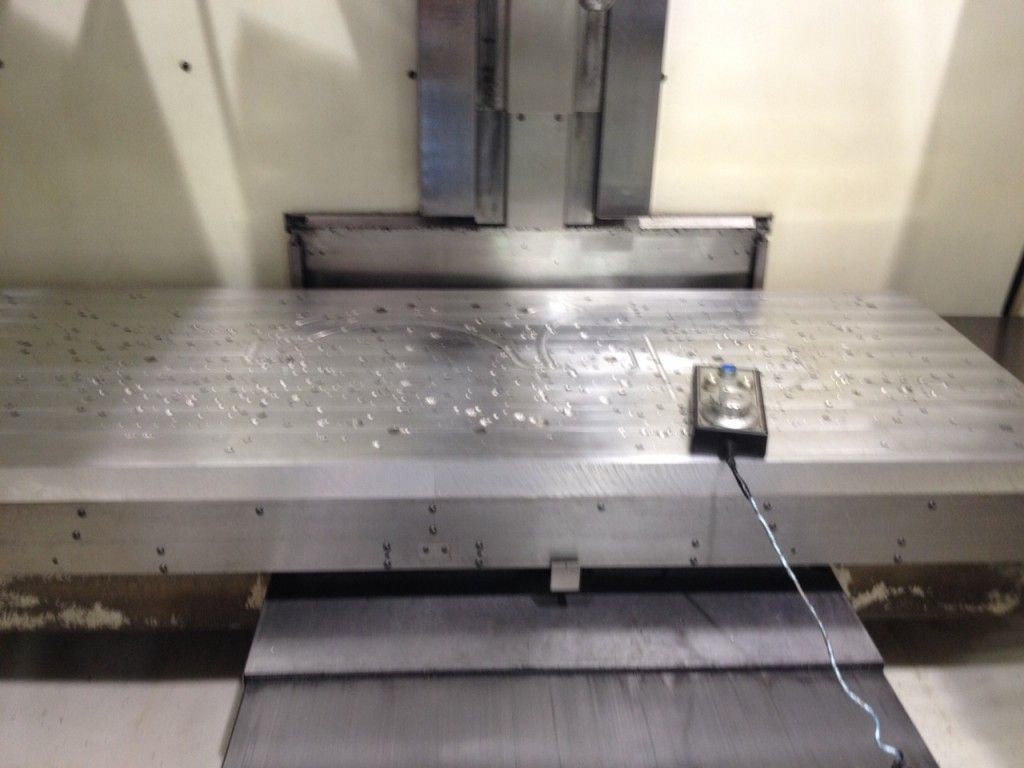

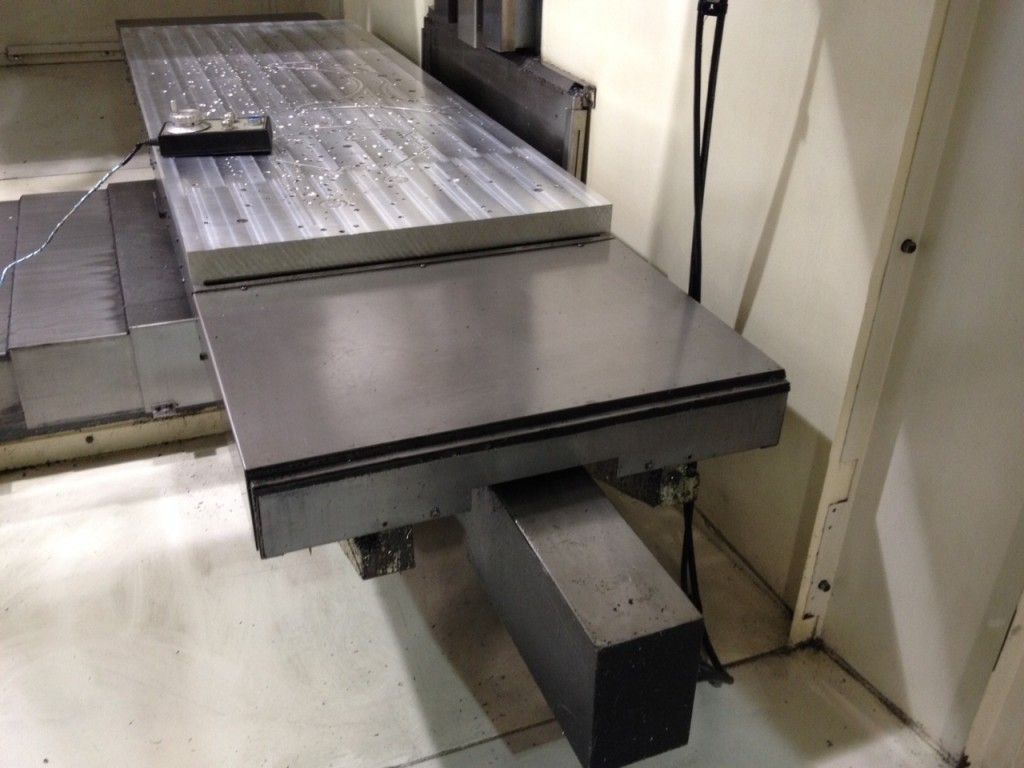

Length of the working table 2095.5 mm
Width of the working table 762 mm
Maximum table load (evenly distributed) 1701.4 kg
Power of the spindle drive 22.4 kW
Number of tools in the magazine 21 pcs
Maximum rotary speed of the vertical spindle 10000 1/min
Travel length X-axis (mechanical feed) 2032 mm
Travel length Y-axis (mechanical feed) 762 mm
Travel length Z-axis (mechanical feed) 762 mm
Number of T-slots in the table 5 pcs

Equipment

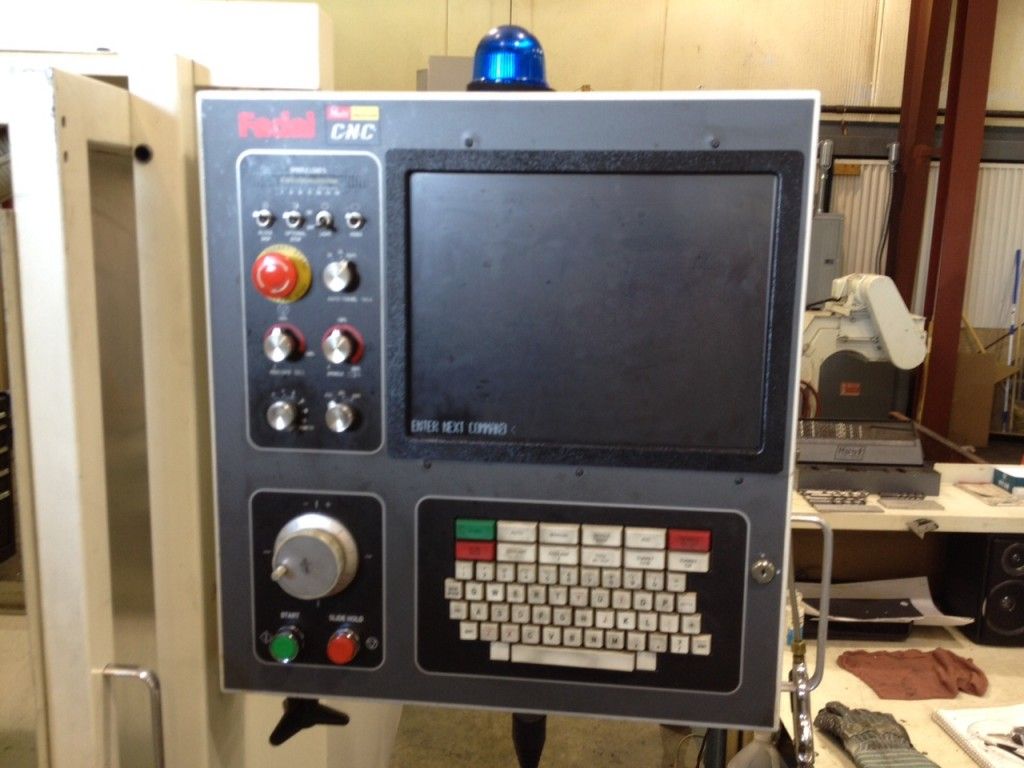

FADAL CNC CONTROL
USB connection
Liquid cooling system
