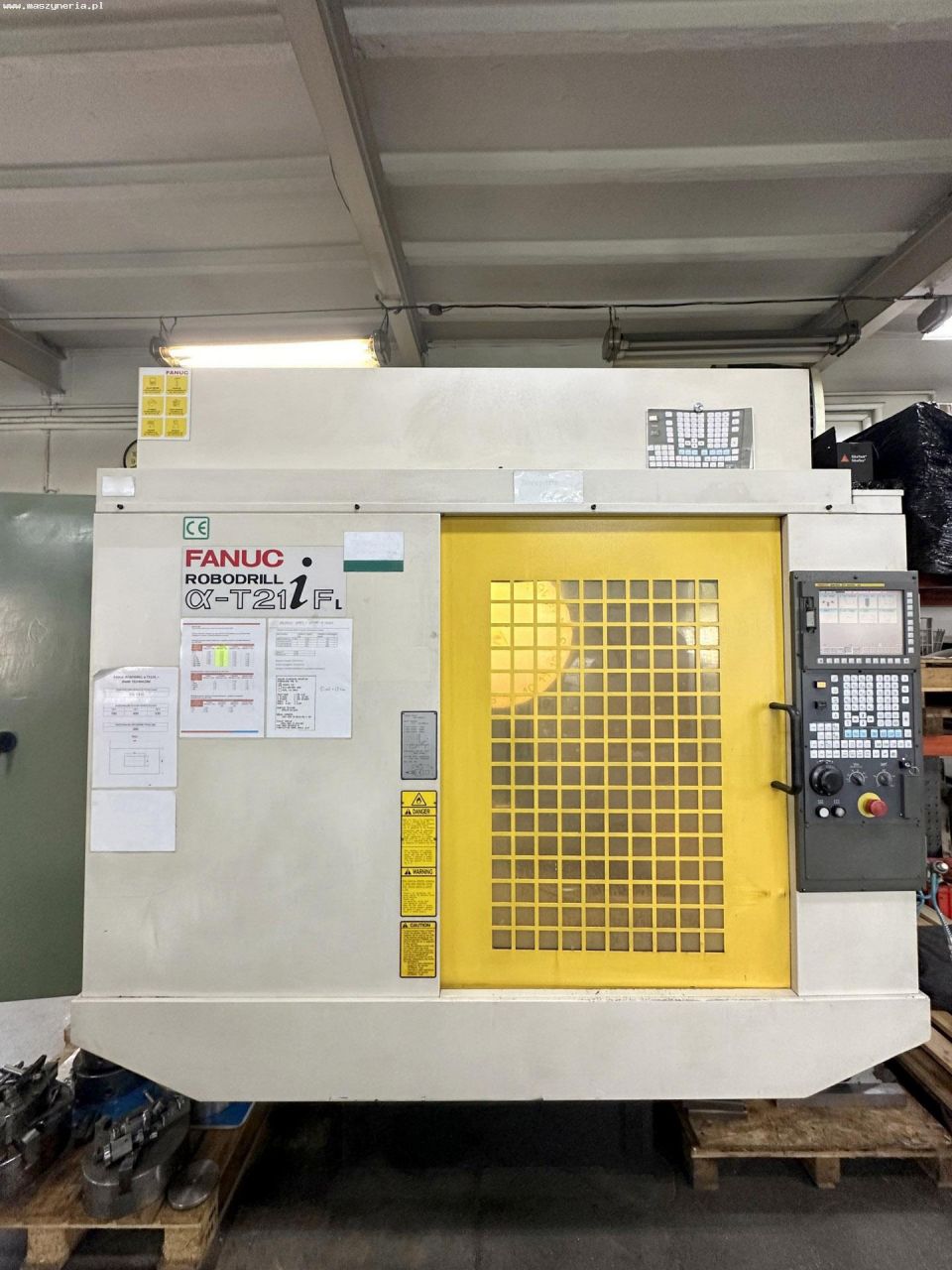

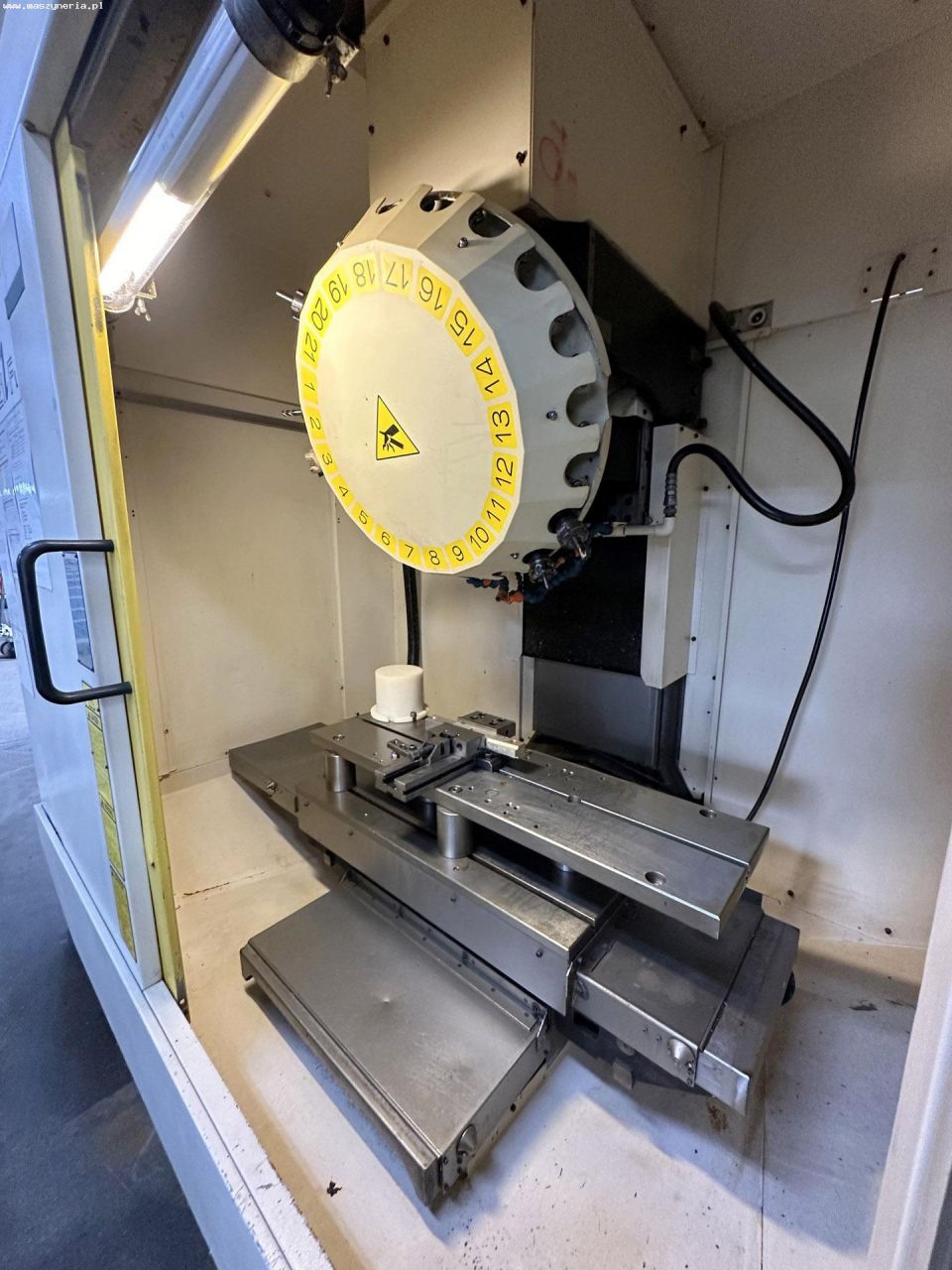

CNC Vertical Machining Center Fanuc ROBODRILL ALPHA T21iFL
CNC Vertical Machining Center Fanuc ROBODRILL ALPHA T21iFL was manufactured by the machine manufacturer Fanuc. Machine Fanuc ROBODRILL ALPHA T21iFL was built in 2008 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2008 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|

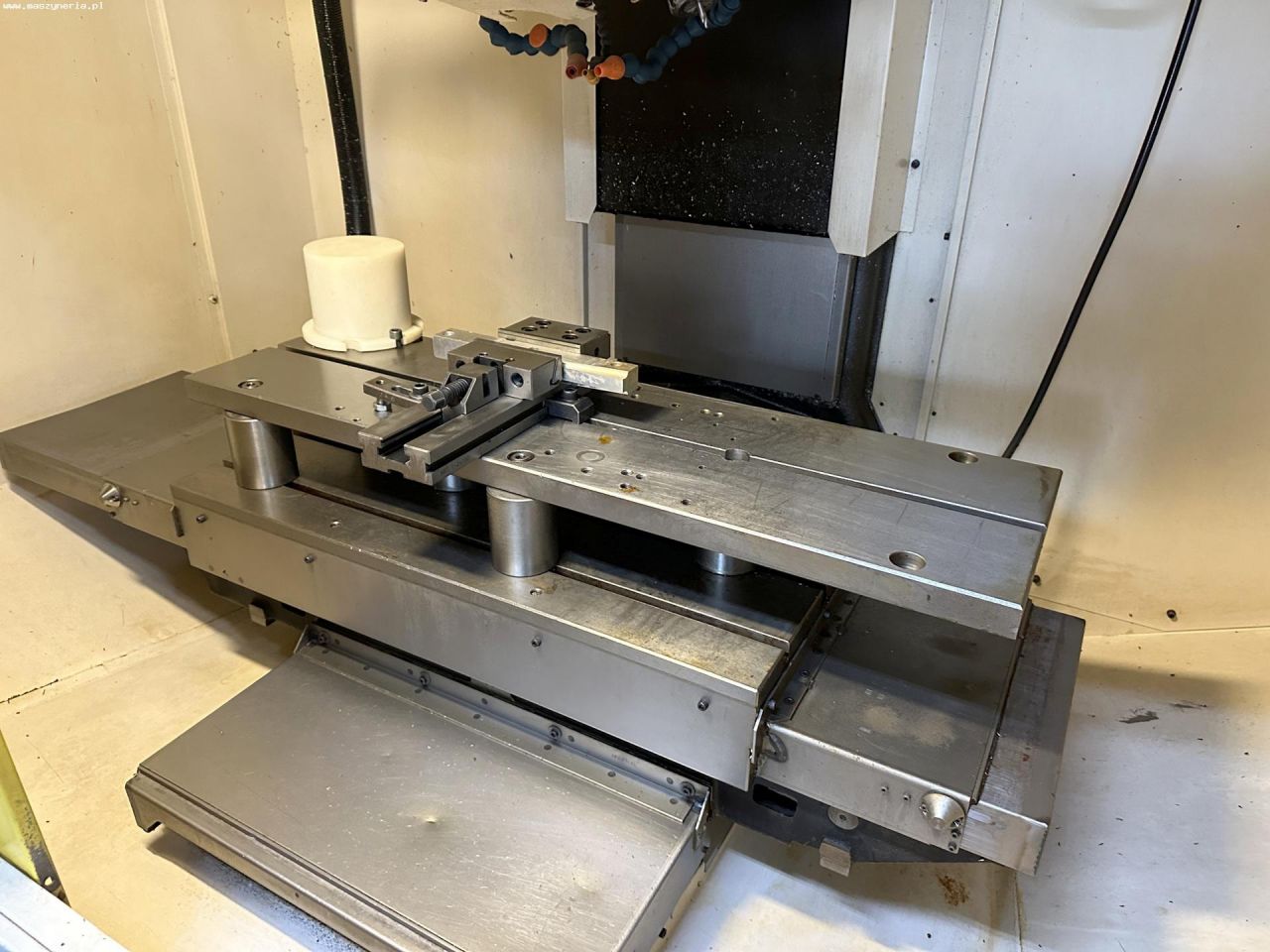

| Length of the working table | 850 mm |
| Width of the working table | 410 mm |
| Maximum table load (evenly distributed) | 300 kg |
| Number of CNC controlled axles | 3 pcs |

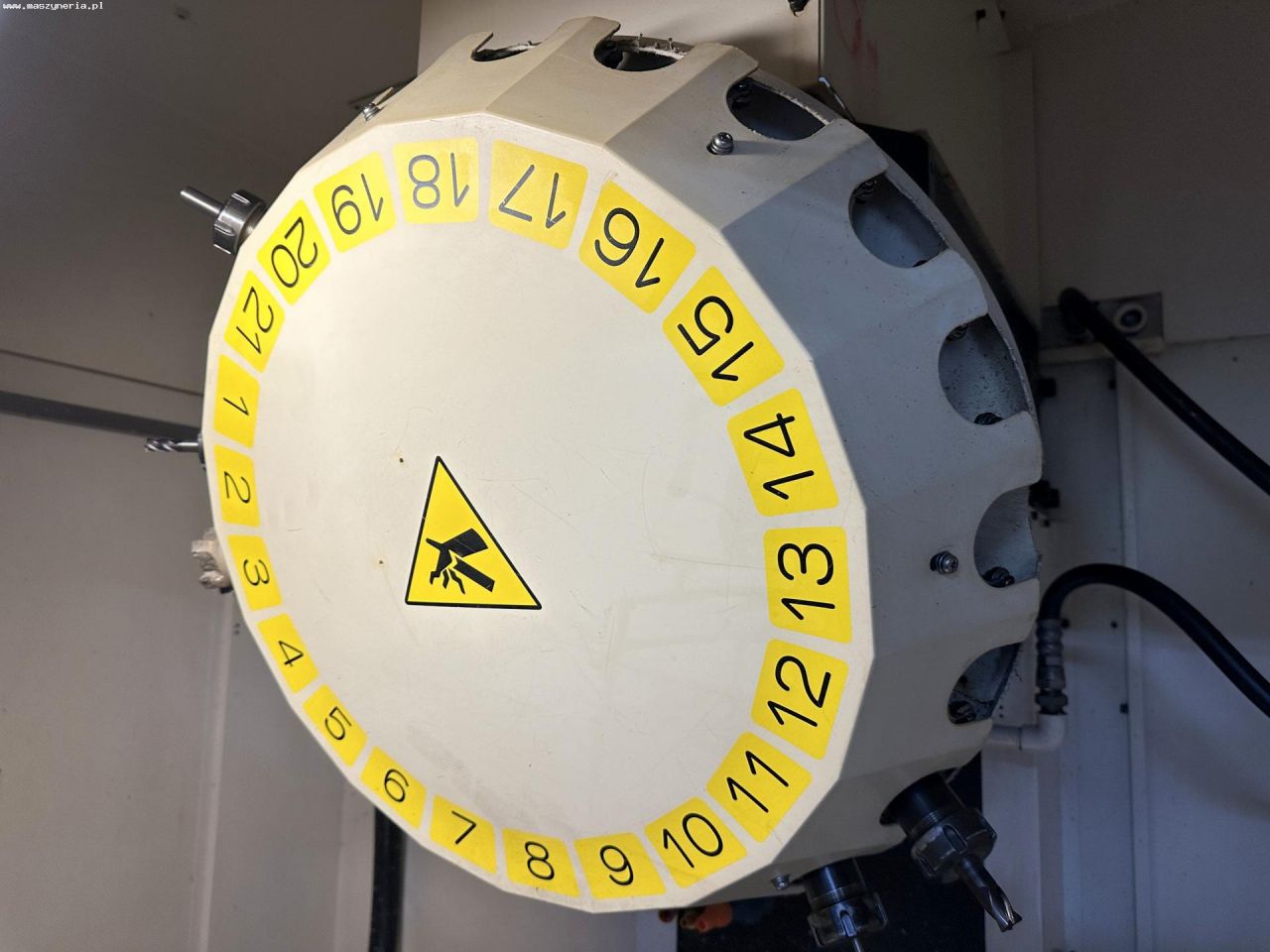

| Number of tools in the magazine | 21 pcs |
| Maximum rotary speed of the vertical spindle | 10000 1/min |
| Travel length X-axis (mechanical feed) | 700 mm |
| Travel length Y-axis (mechanical feed) | 400 mm |
| Travel length Z-axis (mechanical feed) | 330 mm |
| Maximum feed rate in X-axis | 900 mm/s |
| Maximum feed rate in Y-axis | 900 mm/s |
| Maximum feed rate in Z-axis | 900 mm/s |
| Machine weight | 2.2 t |
Equipment | |
|---|---|

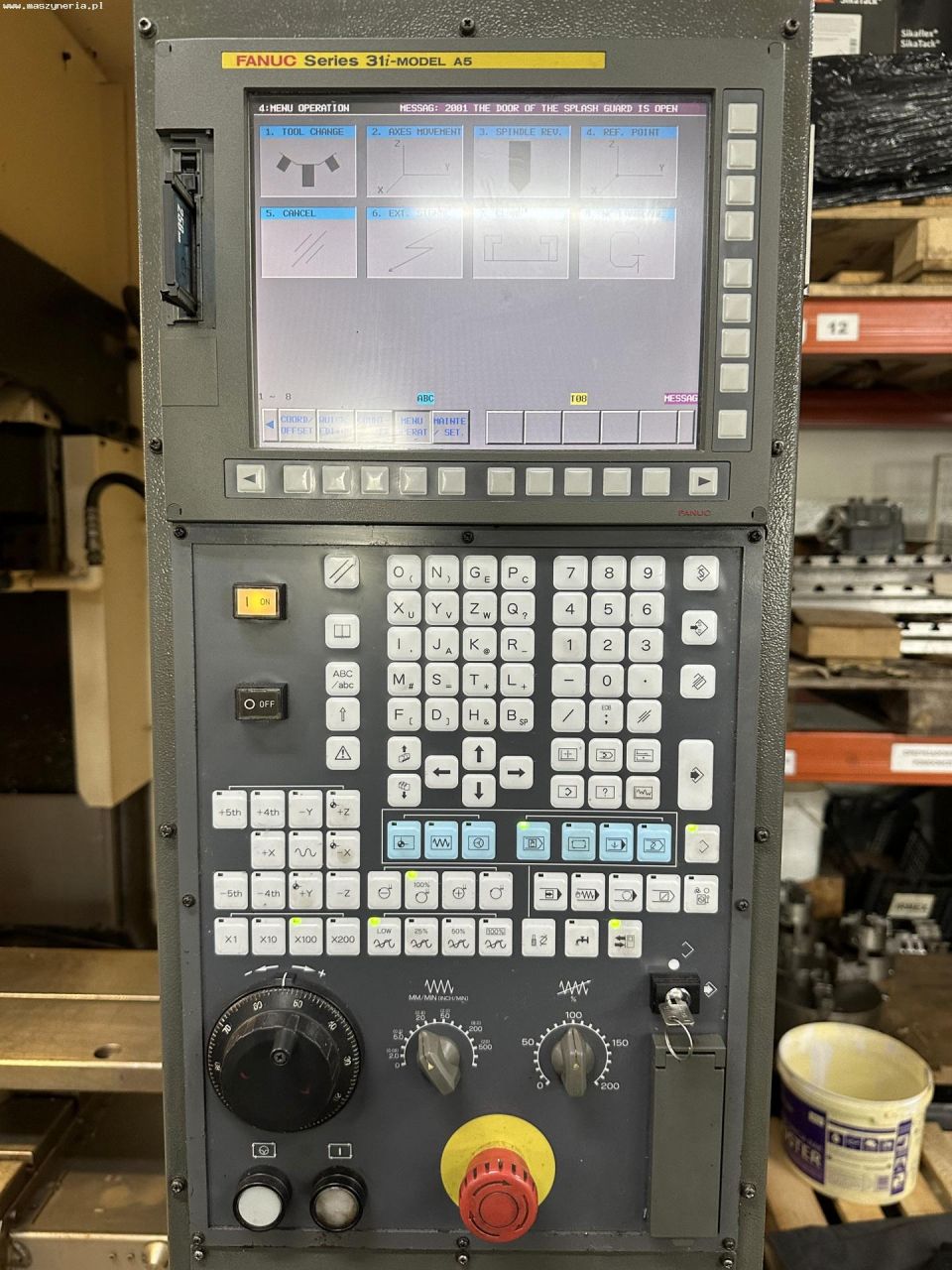

| FANUC Series 31i-MODEL A5 | |

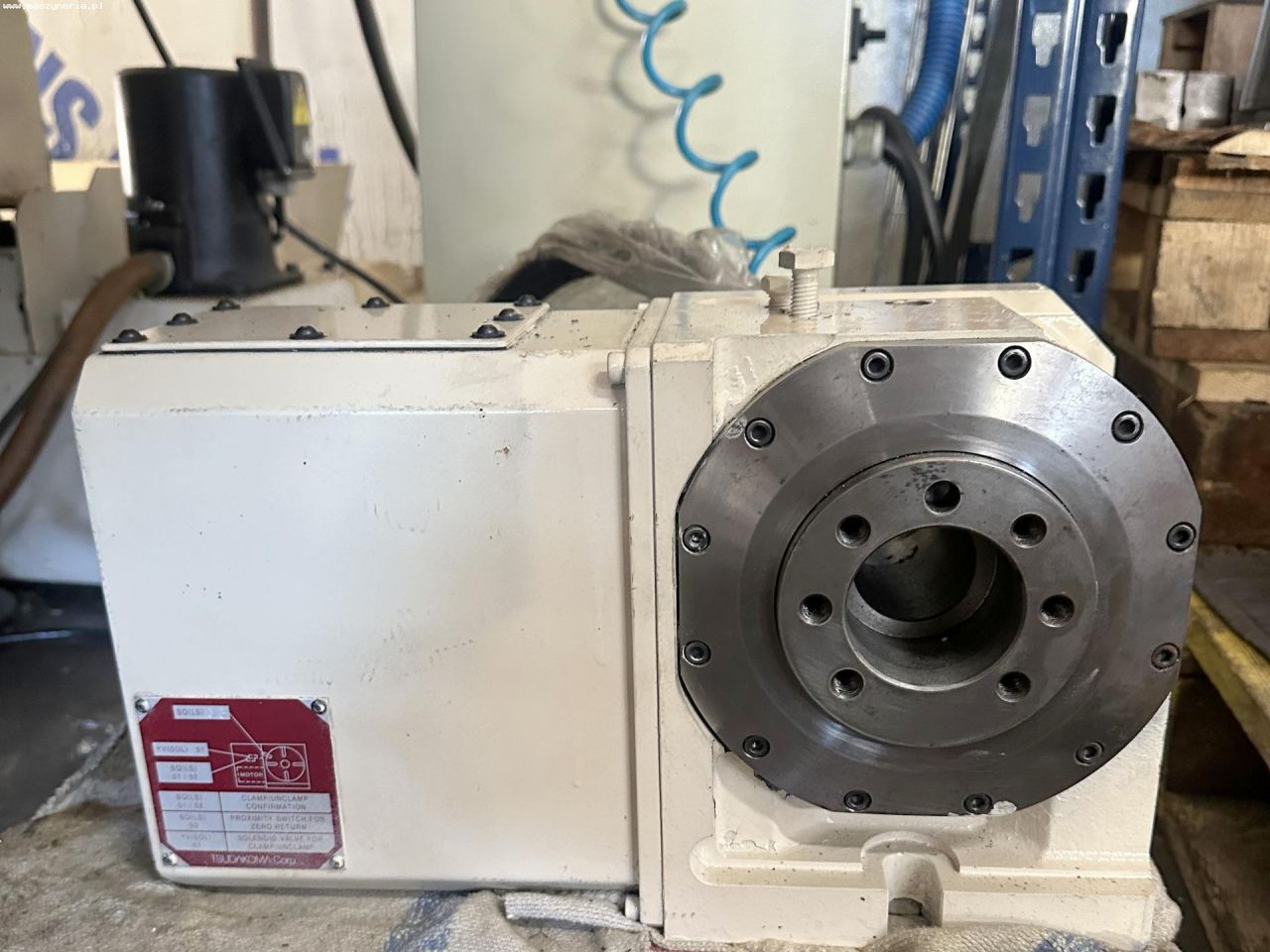

| Rotary working table | |
