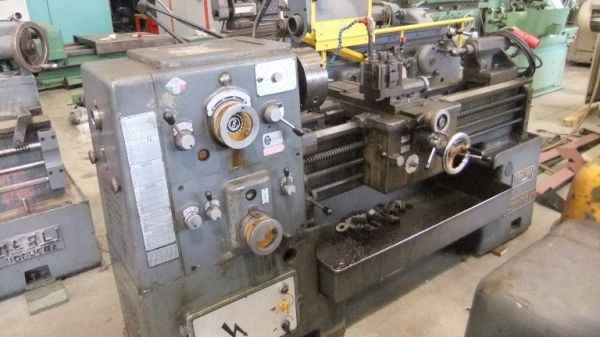

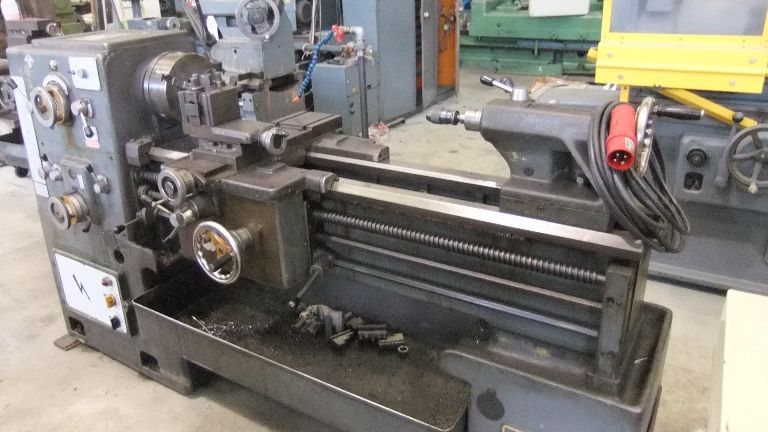

Universal Lathe BREDA BRF 180x1000
Universal Lathe BREDA BRF 180x1000 was manufactured by the machine manufacturer BREDA. Machine BREDA BRF 180x1000 was built in 1988 year.
General data | |
|---|---|
| Location | Italy |
| region | Brescia |
| Year of manufacture | 1988 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum length of the turning | 1000 mm |
| Turning diameter over bed (max) | 360 mm |
| Turning diameter over cross slide (max) | 220 mm |
| Turning diameter in gap | 520 mm |
| Spindle bore | 51 mm |
| Power of the spindle | 4.1 kW |
| Number of the rotary speed of the spindle | 12 pcs |
| Minimum rotary speed of the spindle | 47 1/min |
| Maximum rotary speed of the spindle | 1500 1/min |
| Tailstock quill diameter | 53 mm |
| Weight of the lathe | 1.3 t |
Equipment | |
|---|---|
| no data | |
