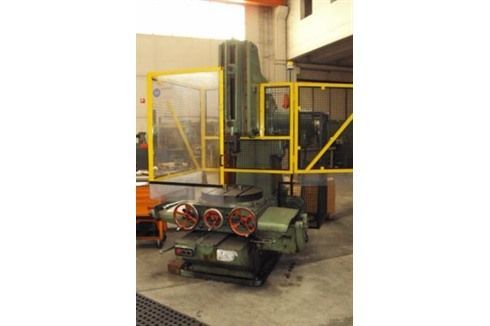

Vertical Slotting Machine MINGANTI SM 400

Category Slotting Machines MINGANTI ›
Manufacturer MINGANTI ›

ARCHIVED AD
Vertical Slotting Machine MINGANTI SM 400 was manufactured by the machine manufacturer MINGANTI. Machine MINGANTI SM 400 was built in 1996 year.

General data

Location Italy
Year of manufacture 1996
Warranty Without warranty

Technical parameters

Maximum length of the slider stroke 400 mm
Minimum length of the slider stroke 50 mm
Diameter of the table 700 mm
Minimum number of strokes of the slider per minute 16 1/min
Maximum number of strokes of the slider per minute 105 1/min
Throat depth (distance from the frame to the plane of the blade mounting) 875 mm
Maximum angle of the slider 10 st
Maximum longitudinal travel of X-axis (power feed) 800 mm
Maximum vertical travel of Z-axis (power feed) 800 mm
Machine weight 6.1 t

Equipment

no data
